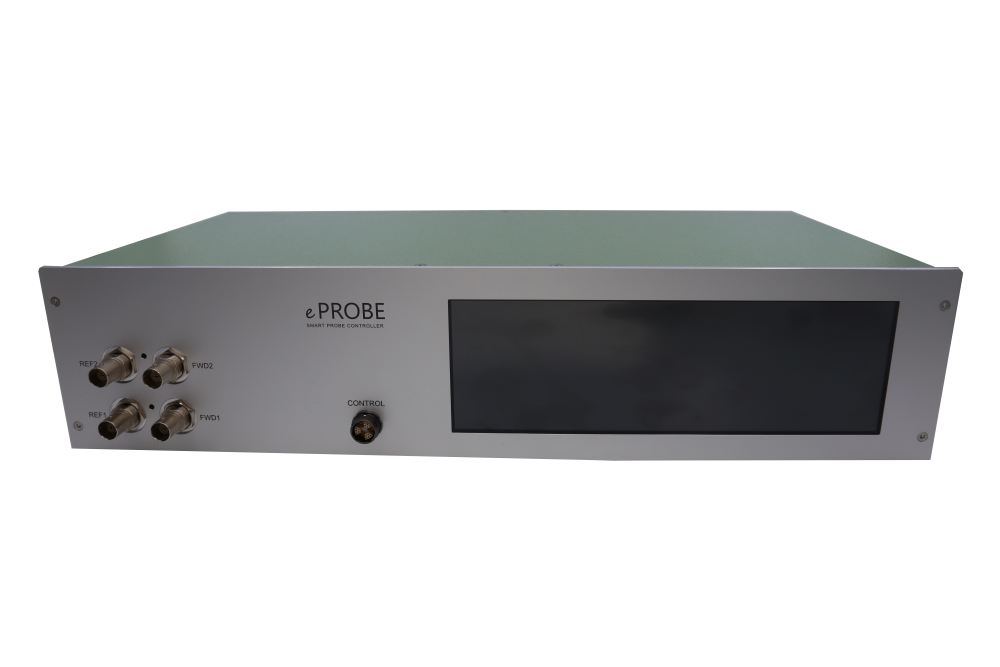

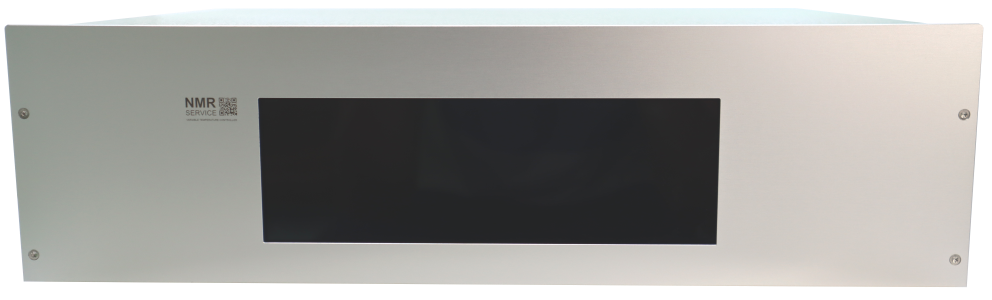

SMART PROBE CONTROLLER (SPC)
- Stand-alone controller unit with integrated software package
- Enables remote/manual and automatic tuning/matching (max. three channels)
- Enables remote/manual and automatic goniometer control
- Suitable for eATM ROBOT and ePROBE probes
- Compatible with any console, e.g. Bruker (Av. III HD, Neo), Tecmag, Varian
- Compatible with any NMR software, e.g. Bruker TopSpin, TNMR
Configurations

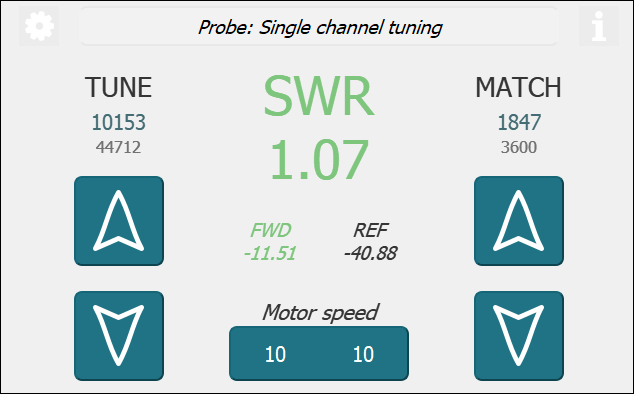

- Single-, double-, and triple-channel controller with software
- Any channel can be used for goniometer control
- Software adapts to selected/detected probe

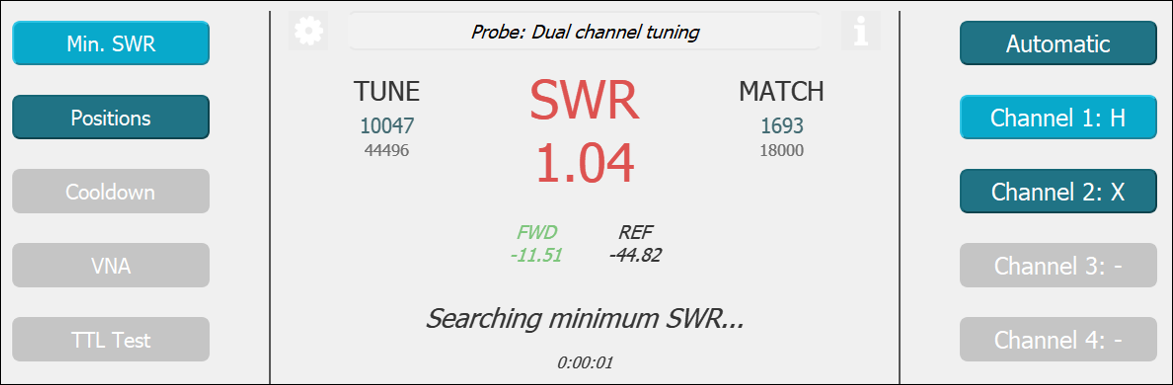

-- e.g. double-channel version to control Tune/Match—X and goniometer
– e.g. double-channel version to control Tune/Match—X and Tune/Match—H
Interface
- Plug-and-play interface to NMR console via USB and/or TTL
- One TTL output/channel required (start tuning/matching or goniometer)
- One TTL input required (stop tuning/matching or goniometer)
- Full synchronisation with the pulse sequence via preamble, e.g. Bruker
Controls and features
- USB interface for external keyboard and USB-C data stick
- Control via front panel touch screen or VNC connection to any computer
- Total frequency range: 30 – 900 MHz
- Usable frequency range depends on the probe and spectrometer
- Automatic probe settings detection (smart probe adapter)
- Maximum flexibility for automatic tuning/matching
-- Automatic tuning/matching mode (continuously/on-the-fly)
-- Tuning/matching by list (pre-save 100+ positions) - Optimal re-calibration of the carrier frequency in automatic measurements of
-- different nuclei,
-- frequency sweep / variable offset cumulative spectra (VOCS) NMR,
-- variable temperature and similar NMR/NQR experiments

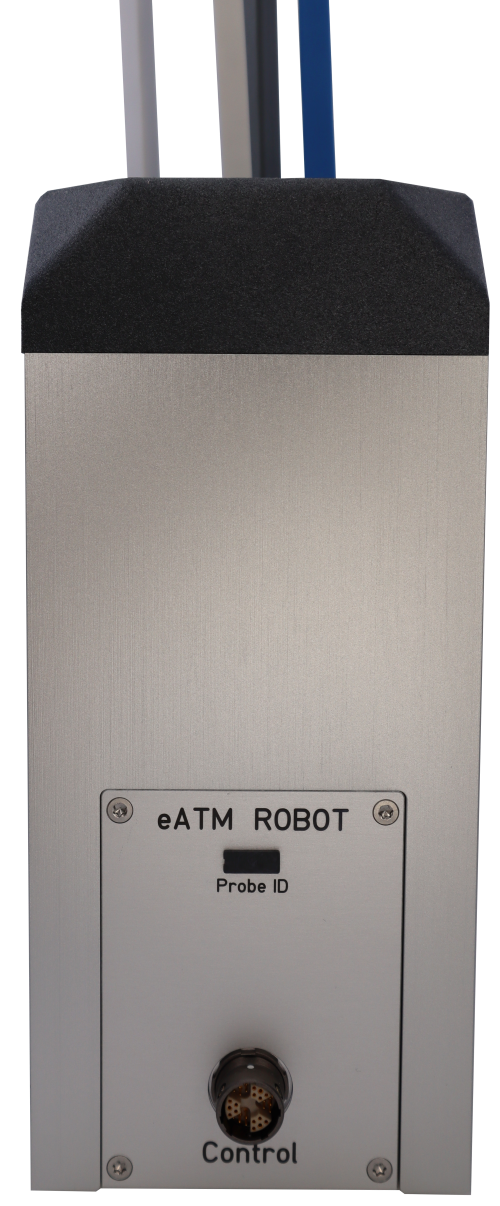

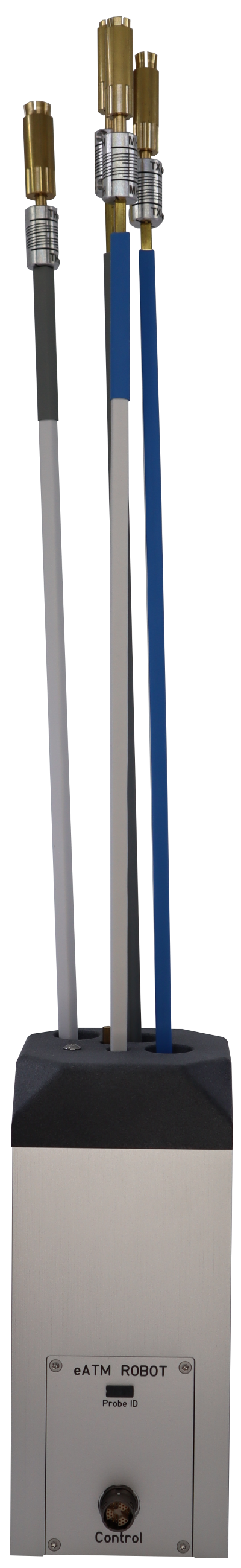

H/F—X eATM ROBOT
- Double-channel external automatic tuning matching (eATM) ROBOT
- Stand-alone unit with hard- and software
- Compatible with any console, e.g. Bruker (Av. III HD, Neo), Tecmag, Varian
- Compatible with almost any probe, e.g. Bruker, Phoenix, Doty
Features
- Suitable for any NMR/NQR experiment that requires automatic re-calibration of the resonance circuit (tune/match), e.g.
-- variable-temperature NMR
-- frequency sweep/VOCS experiments
-- in situ NMR experiments - Suited for H/F—X or X—Y static and MAS probes
-- Option: upgrade to third channel, e.g. for H/F—X—Y probe - Suitable for any magnet and field from 100 MHz to 1 GHz
Setup
- Floor plate to position robot underneath the magnet

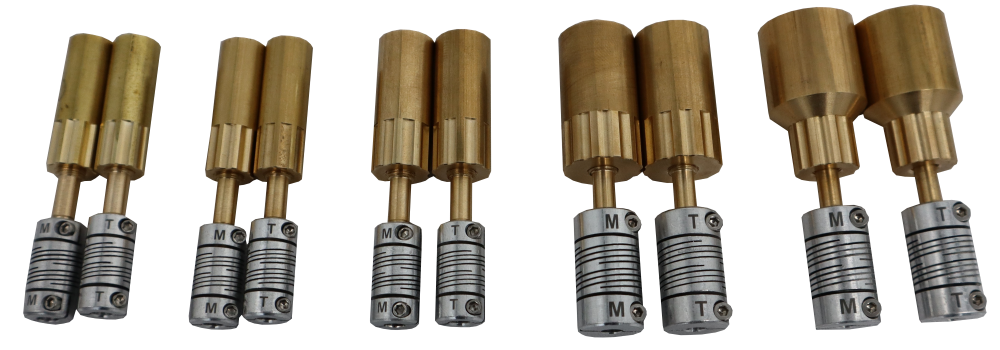

- Fingertips to attach tune/match elements of the probe to the robot
- Hardware fitted to customer requirements
- Electronics and interface to Smart Probe Controller for control and communication with spectrometer
- Probe ID to save the settings for up to 4 different probes

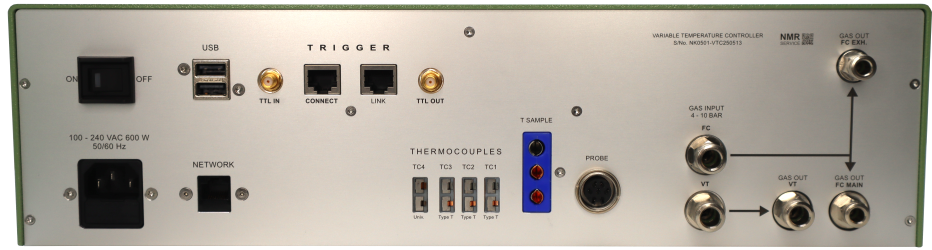

VT and Flow Controller
- Standalone unit including hard- and software for VT and/or flow control.
- Rack mount possible.
- Compatible with any console, e.g. Bruker (Av. III HD, Neo), Tecmag, Varian
- Compatible with any probe, e.g. Bruker, Phoenix, Doty
Operation Modes
- Flow control only
- Temperature control with internal flow control (typical for static NMR experiments)
- Temperature control with external flow control (typical for MAS NMR experiments) (interlock required)
Control and Automation

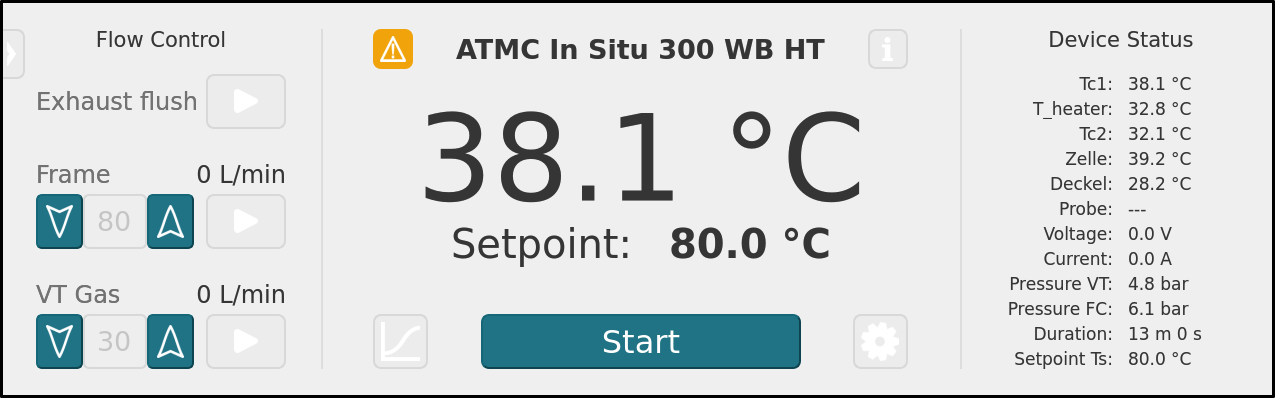

- Control via front panel touch screen or VNC connection to any computer
- Compatible with Smart Probe Controler for Tune/Match adjustment during experiments
- Experiment automation for both Bruker and Tecmag type experiments
Configurations
- Temperature range -50° to +400°C (higher/ lower temperatures to be discussed)
- Flow range 0 l/min to 60 l/min
- Separate Frame Cooling gas possible (0-100 l/min)
- Adjustable PID settings
- Up to 6 simultaneous temperature measurements (more to be discussed)
- Option for various heater (e.g. Bruker, Varian) and temperature sensor types
Watch this space for your customised solution - contact us.
